DELTA SYSTEM (YAMAHA-MINARELLI - Clutch BELL Ø 107)

for YAMAHA AEROX 50 2T LC euro 0-1

5214113

€ 121.35
-10%
€ 109.22

The product is AVAILABLE

Description

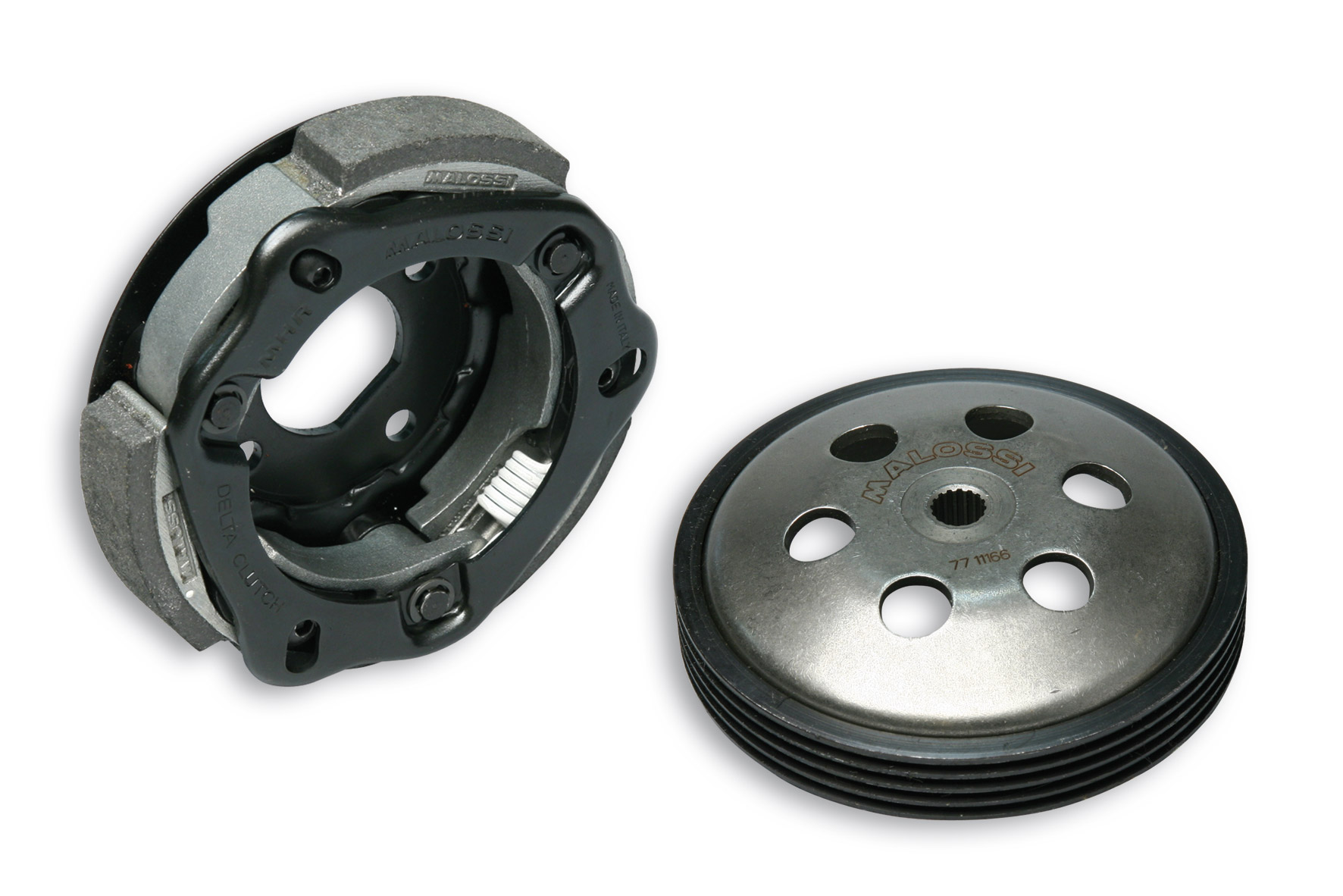

DELTA SYSTEM

Centrifugal clutch system with clutch bell for scooter RACING

System comprises the famous:

  • Patented adjustable clutch (Delta Clutch).
  • In addition, the reinforced, anti-failure clutch bell (Wing Clutch Bell) with cooling fins, dynamically balanced, designed for competitive and sport applications.



Delta Clutch

Delta Clutch is a clutch developed within the scooter racing circuits and in a short period has become a benchmark product, key to scooter performance.

The simplicity of the system quickly allows spring adjustment with regards to centrifugal force and the possibility of interchanging a spring with different K values. These values are listed in the Malossi catalogue.

Another option this system allows is position adjustment of the small mass which determines the pressure between friction material and clutch bell. In addition, this small mass is interchangeable with other masses of varying weights.

The complete system is patented to protect against shameless attempts to copy and falsify the product.

Delta has attained the recognition of many qualified tuners and the facts are the proof : used by all the racing teams and a vast amount of sport riders, resulting in a continuous increase in sales.

As always, Malossi constantly analyses its products during their operation and Delta is no exemption. It has been optimized by implementing small but important updates, maintaining Delta as a leading edge product.

We are very proud of the fact that Malossi clutches are asbestos free, however, much investment in research was needed in achieving this present level of quality, reliability, and especially selection of friction materials.

We can now affirm, with great certainty, that we possess an exclusive formula for producing a high temperature resistant material that does not alter its coefficient of friction due to prolonged operational stresses.



Wing Clutch Bell

Technical Specifications

  • Clutch Bell forged using Fe DC04 deep-drawing steel.
  • Carbon steel centre hub made of round stock and TIG welded.
  • Surface hardened through nitriding.
  • Finned reinforcement ring, made of machined carbon steel, black oxide surface finish, press fit.
  • 100% dynamically balanced.

Due to the strong demand for these two products, we decided to offer them both in a single package.

This allows Malossi to supply two quality products with a cost savings for the customer.



Produits réservés exclusivement à la compétition dans les lieux réservés pour et suivant les dispositions des autorités sportives compétentes. Nous déclinons toutes responsabilités en cas d'utilisation inadéquate.

Makes and Models

DELTA SYSTEM (YAMAHA-MINARELLI - Clutch BELL Ø 107)

Make Model
APRILIA APRILIA AMICO 50 2T
APRILIA APRILIA AREA 51 50 2T LC
APRILIA APRILIA GULLIVER 50 2T LC
APRILIA APRILIA GULLIVER 50 2T
APRILIA APRILIA RALLY 50 2T (MINARELLI)
APRILIA APRILIA SR NETSCAPER 50 2T LC (MINARELLI)
APRILIA APRILIA RALLY 50 2T LC (MINARELLI)
APRILIA APRILIA SCARABEO 50 2T (MINARELLI)
APRILIA APRILIA SR RACING 50 2T LC (MINARELLI)
APRILIA APRILIA SONIC 50 2T
APRILIA APRILIA SONIC 50 2T LC
APRILIA APRILIA SR STEALTH 50 2T LC (MINARELLI)
APRILIA APRILIA SR WWW 50 2T
BETA BETA ARK 50 2T
BETA BETA ARK 50 2T LC
BETA BETA CHRONO 50 2T
BETA BETA EIKON 50 2T LC
BENELLI BENELLI 491 SPORT 50 2T LC (MINARELLI)
BENELLI BENELLI 491 GT 50 2T (MINARELLI)
BENELLI BENELLI K2 50 2T
BENELLI BENELLI K2 50 2T LC
BENELLI BENELLI NAKED 50 2T
BENELLI BENELLI PEPE 50 2T
ITALJET ITALJET DRAGSTER 50 2T LC
MALAGUTI MALAGUTI F10 50 2T
MALAGUTI MALAGUTI F12-PHANTOM 50 2T
MALAGUTI MALAGUTI CENTRO 50 2T
MALAGUTI MALAGUTI CIAK 50 2T
MALAGUTI MALAGUTI F15 FIREFOX 50 2T LC
MALAGUTI MALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC
MALAGUTI MALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC euro 2
MALAGUTI MALAGUTI F12-PHANTOM 50 2T LC
MALAGUTI MALAGUTI F12 R LC 50 2T LC euro 2
MALAGUTI MALAGUTI YESTERDAY 50 2T
MBK MBK BOOSTER 50 2T euro 0-1
MBK MBK BOOSTER SPIRIT 50 2T euro 0-1
MBK MBK BOOSTER X 50 ie 4T LC euro 2
MBK MBK FLIPPER 50 2T
MBK MBK FORTE 50 2T
MBK MBK HOT CHAMP 50 2T
MBK MBK MACH G 50 2T
MBK MBK MACH G 50 2T LC
MBK MBK NITRO 50 2T LC
MBK MBK NITRO 50 ie 4T LC euro 2
MBK MBK BOOSTER NG 50 2T euro 0-1
MBK MBK OVETTO 50 2T
MBK MBK OVETTO UBS 50 ie 4T LC euro 2
MBK MBK BOOSTER ROCKET 50 2T euro 0-1
MBK MBK SORRISO 50 2T 1996->
MBK MBK STUNT 50 2T euro 0-1
YAMAHA YAMAHA AEROX 50 2T LC euro 0-1
YAMAHA YAMAHA AEROX 50 2T LC euro 2
YAMAHA YAMAHA AEROX 4 50 ie 4T LC euro 4 2018-> (A333E)
YAMAHA YAMAHA AEROX 4 50 ie 4T LC euro 2 (A326E)
YAMAHA YAMAHA BW'S 50 2T euro 0-1
YAMAHA YAMAHA BW'S NG 50 2T euro 0-1
YAMAHA YAMAHA C3 [XF] 50 ie 4T LC euro 2 (A311E)
YAMAHA YAMAHA JOG ER 50 2T
YAMAHA YAMAHA GIGGLE [XF] 50 ie 4T LC euro 2 (A311E)
YAMAHA YAMAHA JOG 50 2T
YAMAHA YAMAHA JOG R 50 2T
YAMAHA YAMAHA JOGRR 50 2T LC euro 2
YAMAHA YAMAHA JOG Z 50 2T
YAMAHA YAMAHA NEO'S 50 2T
YAMAHA YAMAHA NEO'S 4 50 ie 4T LC euro 2 (A316E)
YAMAHA YAMAHA NEO'S 4 50 ie 4T LC euro 4 2019->
YAMAHA YAMAHA SLIDER 50 2T
YAMAHA YAMAHA SPY 50 2T
YAMAHA YAMAHA VINO 50 2T
YAMAHA YAMAHA VOX [XF] 50 ie 4T LC euro 2 (A311E)
YAMAHA YAMAHA WHY 50 2T
YAMAHA YAMAHA ZUMA 50 2T
YAMAHA YAMAHA ZUMA FX 50 ie 4T LC

Spare parts

DELTA SYSTEM (YAMAHA-MINARELLI - Clutch BELL Ø 107)

Code Description Price
52 9451 DELTA CLUTCH adjust. autom. clutch for CLUTCH BELL Ø 107 € 95.03
7711166 WING CLUTCH BELL inner Ø 107 mm YAMAHA-MINARELLI € 49.82
