ALUM-COMPL.CYL. Ø 75,5 pin Ø 15 H2O 4-stroke

for PIAGGIO X7 250 ie 4T LC euro 3 (QUASAR M622M)

3113924

€ 420.90
-10%
€ 378.81



The product is AVAILABLE

Description

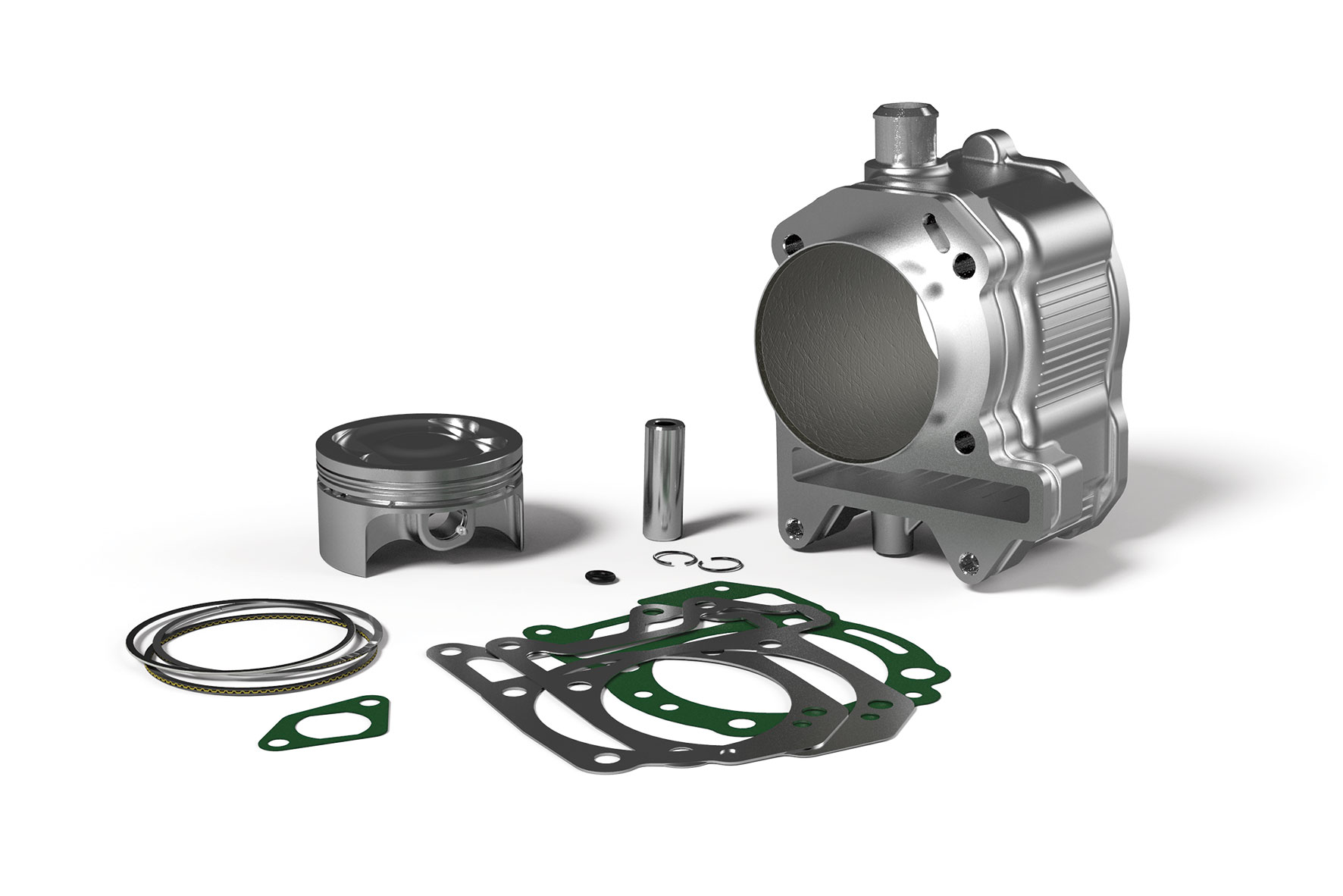

COMPLETE CYLINDER 4-STROKE

TECHNICAL FEATURES

Cylinder

  • Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
  • Machining: on machine tools with high precision numerical control.
  • Cylinder-piston connection with an allowance of 0.05 mm.
  • Recalculated and upgraded heat exchange surfaces.

Piston

  • Ultra compact with 3 rings.
  • Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
  • Machining on machine tools with numerical control.
  • Lightened and reinforced.
  • Upgraded heat exchange surfaces.

Piston rings

  • Compression - special rings with high sliding ease and very high mechanical resistance, in chromium-plated S10 spheroidal cast-iron.
  • 1st scraper - ring in chromium-plated S10 spheroidal cast iron.
  • 2nd three - piece scraper ring made of chromium-plated steel alloy.

Products reserved exclusively for competitions in places intended for them in accordance with the provisions of the competent sports authorities. We Disclaim all liability for improper use

Applies to

ALUM-COMPL.CYL. Ø 75,5 pin Ø 15 H2O 4-stroke

Code Description Price
3117542 ALUM.CYL.KIT Ø 75,5 pin Ø 15 H2O 4-stroke € 845.46
