ALUMIN-CYL. KIT Ø 39,88 pin Ø 12 H2O MHR TEAM mod-head

for APRILIA RS4 50 2T LC euro 2 (DERBI)

3112981

€ 435.70
-10%
€ 392.13



The product is AVAILABLE

Description

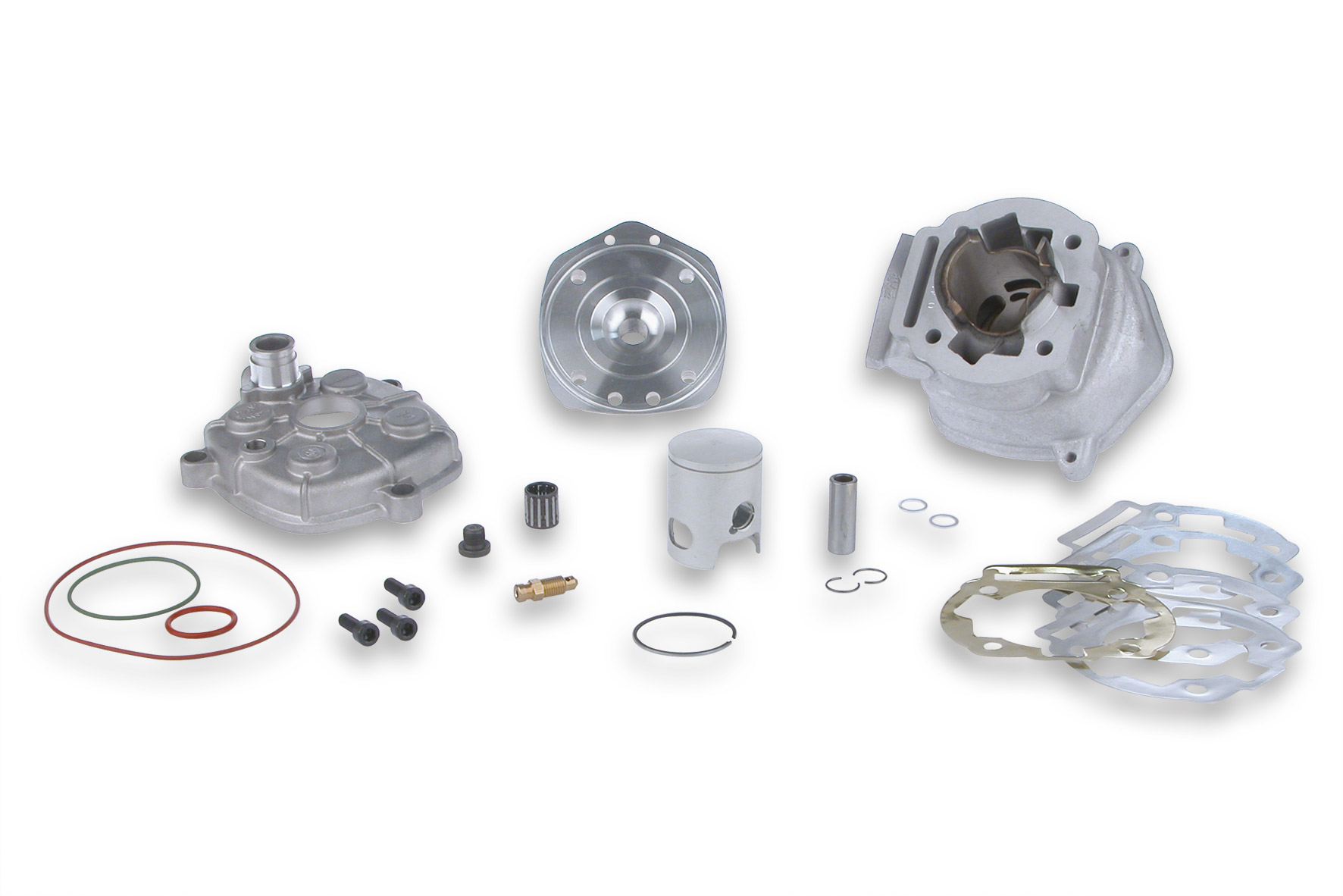

CYLINDER KIT MHR modular head

The new MHR MODULAR-HEAD CYLINDER KITS are the natural evolution of the MHR MALOSSI line. The result of the research of its engineers, they have been a decisive factor in the victories of the official national and European teams in the cross and speed trophies. Malossi is happy to be able to guarantee that all riders taking part in the coming season National and European Trophies will have a product offering excellent quality and performance.

CYLINDER

  • Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures.
  • Heat treatment: special quenching and stabilising treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C.
  • Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity).
  • Inner surface coating: effected using silicon carbide on a nickel matrix with heat treatment that guarantees extreme hardness (around 600 HV0, 1/5) and excellent resistance to wear.
  • Internal machining of cylinder: using special machines that allow a degree of finish on the cylinder barrel walls whose roughness corresponds with the angles set at the design stage (grinding process using special stone).
  • Port and exhaust diagrams: designed and manufactured especially for racing. The definition of the port and exhaust diagrams has requested considerable effort on the part of our engineers both on engine test stands and the circuits on which the trophy is held.

PISTON

  • Material: special aluminium alloy with a very high percentage of silicon and titanium that guarantees both excellent heat resistance and strain strength upon temperature variation.
  • External coating: graphite coating that guarantees a very low friction coefficient.
  • Structure: reinforced in order to offer resistance to the stress suffered by cylinder units used for top-level competition, but at the same time light enough to reduce inertial force.

PISTON RING

  • Ring in very strong modular cast iron with ground, wear-resistant, hard chrome metal-spray coating on the contact surface.

HEAD

The new Malossi modular head has been specially created to guarantee elimination of the notable amount of heat that develops in an engine with a very high specific horsepower designed for racing.
It consists of a head in special hardened and tempered aluminium alloy with high silicon content that is fixed directly to the cylinder barrel. It is lapped over its entire outer surface by the coolant thus guaranteeing a very large heat-exchange surface. In addition, being unattached to the internal walls it is free to follow the expansion of the cylinder.
The combustion chamber is entirely manufactured using numerical control machines in order to ensure shape and size tolerances to within just one hundredth of a millimetre.
The modular head system is completed by a cover that closes off the upper part of the cylinder, thus guaranteeing that the coolant is fully sealed.
The geometry and cross-section of the combustion chamber for this cylinder unit have been specially designed for use in the Scooter Speed Trophy and Scooter Cross Trophy.

Products reserved exclusively for competitions in places intended for them in accordance with the provisions of the competent sports authorities. We Disclaim all liability for improper use

Makes and Models

ALUMIN-CYL. KIT Ø 39,88 pin Ø 12 H2O MHR TEAM mod-head

Make Model
APRILIA APRILIA RS 50 2T LC euro 2 2006-> (DERBI D50B1)
APRILIA APRILIA RS 50 2T LC euro 4 2018-> (D50B0)
For the proper fitting of cylinder kit it is necessary to fit also ADAPTER for temperature SENSOR art. 1518170B.
APRILIA APRILIA RS4 50 2T LC euro 2 (DERBI)
APRILIA APRILIA RX 50 2T LC 2007-> (DERBI D50B0)
APRILIA APRILIA RX FACTORY 50 2T LC euro 4 2018-> (D50B0)
For the proper fitting of cylinder kit it is necessary to fit also ADAPTER for temperature SENSOR art. 1518170B.
APRILIA APRILIA SX 50 2T LC 2007-> (DERBI D50B0)
APRILIA APRILIA SX 50 2T LC euro 4 2018-> (D50B0)
For the proper fitting of cylinder kit it is necessary to fit also ADAPTER for temperature SENSOR art. 1518170B.
APRILIA APRILIA SX FACTORY 50 2T LC euro 4 2018-> (D50B0)
For the proper fitting of cylinder kit it is necessary to fit also ADAPTER for temperature SENSOR art. 1518170B.
DERBI DERBI Senda DRD PRO R 50 2T LC (D50B0)
DERBI DERBI Senda DRD PRO SM 50 2T LC (D50B0)
DERBI DERBI Senda DRD RACING R - SM 50 2T LC (D50B0)
DERBI DERBI Senda EVO SM 50 2T LC (D50B0)
DERBI DERBI GPR NUDE 50 2T LC 2006-> (D50B0)
DERBI DERBI GPR RACING 50 2T LC 2006-> (D50B0)
DERBI DERBI GPR R 50 2T LC euro 2 2012->
DERBI DERBI Senda LIMITED SM 50 2T LC euro 4 2018-> (D50B0)
For the proper fitting of cylinder kit it is necessary to fit also ADAPTER for temperature SENSOR art. 1518170B.
DERBI DERBI Senda X-RACE R - X-RACE SM 50 2T LC (D50B0)
DERBI DERBI Senda X-TREME R - X-TREME SM 50 2T LC (D50B0)
DERBI DERBI Senda X-TREME SM 50 2T LC euro 4 2018-> (D50B0)
For the proper fitting of cylinder kit it is necessary to fit also ADAPTER for temperature SENSOR art. 1518170B.
GILERA GILERA DRIFTING 50 2T LC euro 4 2018-> (D50B0)
For the proper fitting of cylinder kit it is necessary to fit also ADAPTER for temperature SENSOR art. 1518170B.
GILERA GILERA RCR - SMT 50 2T LC (DERBI D50B0)
GILERA GILERA RCR 50 2T LC euro 4 2018-> (D50B0)
For the proper fitting of cylinder kit it is necessary to fit also ADAPTER for temperature SENSOR art. 1518170B.
GILERA GILERA SMT 50 2T LC euro 4 2018-> (D50B0)
For the proper fitting of cylinder kit it is necessary to fit also ADAPTER for temperature SENSOR art. 1518170B.
DERBI DERBI Senda X-TREME R 50 2T LC euro 4 2018-> (D50B0)
For the proper fitting of cylinder kit it is necessary to fit also ADAPTER for temperature SENSOR art. 1518170B.
DERBI DERBI Senda RACING SM 50 2T LC euro 4 2018-> (D50B0)
For the proper fitting of cylinder kit it is necessary to fit also ADAPTER for temperature SENSOR art. 1518170B.
